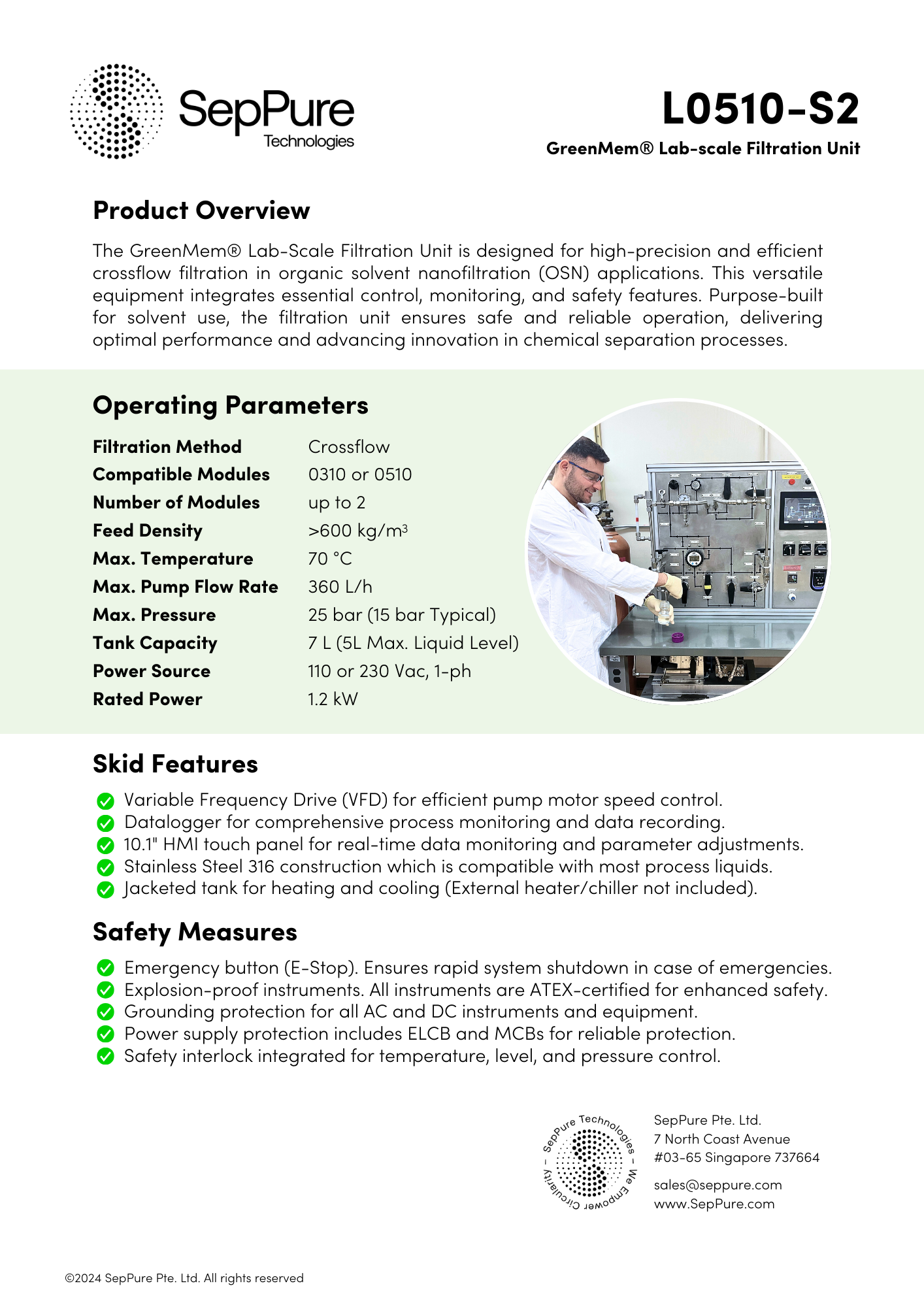

Lab Scale Filtration Unit

Product Overview

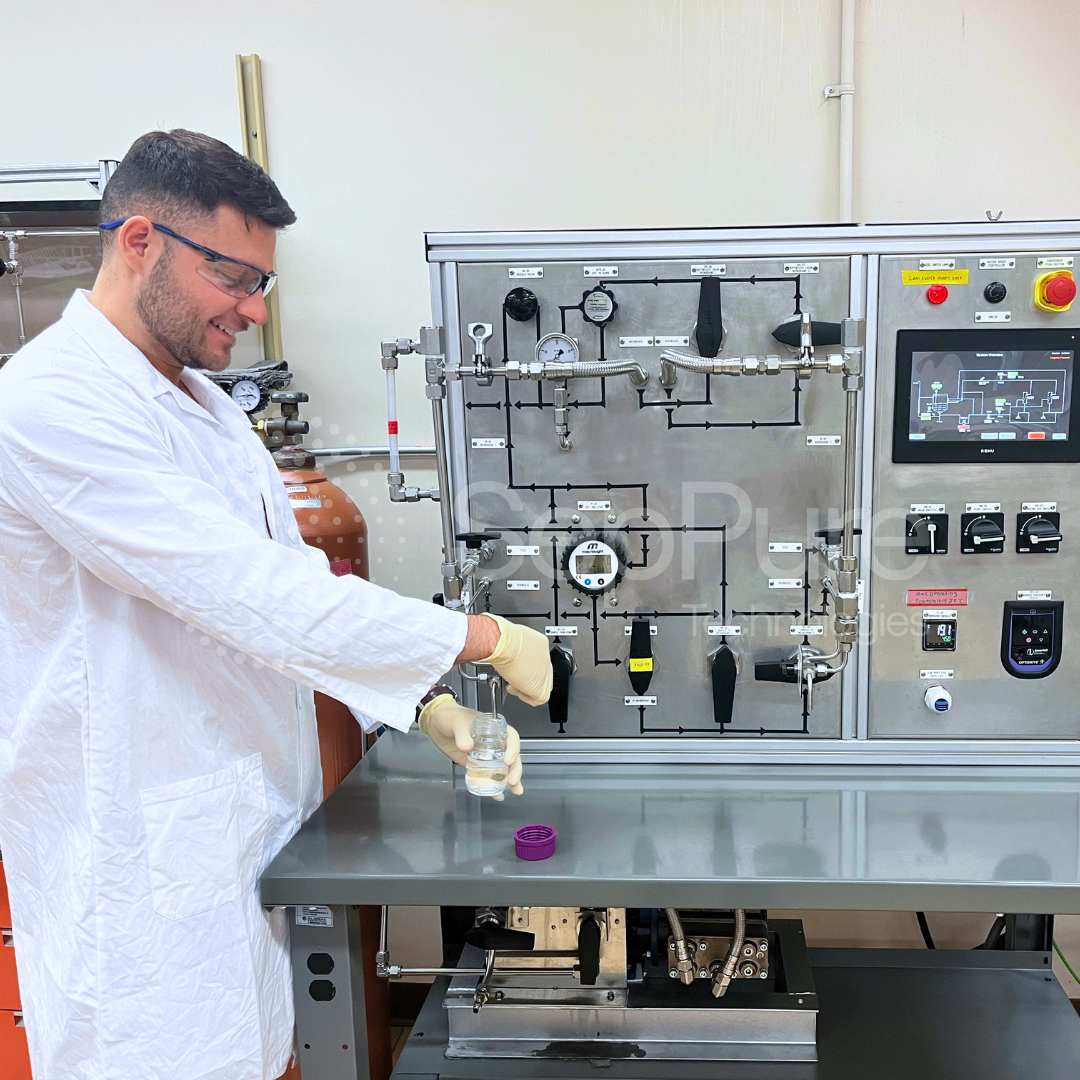

The GreenMem® Lab-Scale Filtration Unit is designed for high-precision and efficient crossflow filtration in organic solvent nanofiltration (OSN) applications. This versatile equipment integrates essential control, monitoring, and safety features. Purpose-built for solvent use, the filtration unit ensures safe and reliable operation, delivering optimal performance and advancing innovation in chemical separation processes.

Key Features and Specifications

Operating Parameters:

• Filtration Method: Crossflow
• Compatible Modules: 0310 or 0510
• Number of Modules: up to 2
• Feed Density: >600 kg.m3
• Max. Temperature: 70°CMax. Pump Flow Rate: 360 Litres per Minute
• Max. Pressure: 25 bar (15 bar typical for GreenMem® modules)
• Tank Capacity: 7 Litres (5L Max. Liquid Level)
• Power Source: Single phase, 110Vac or 230Vac
• Rated Power: 1.2 kW

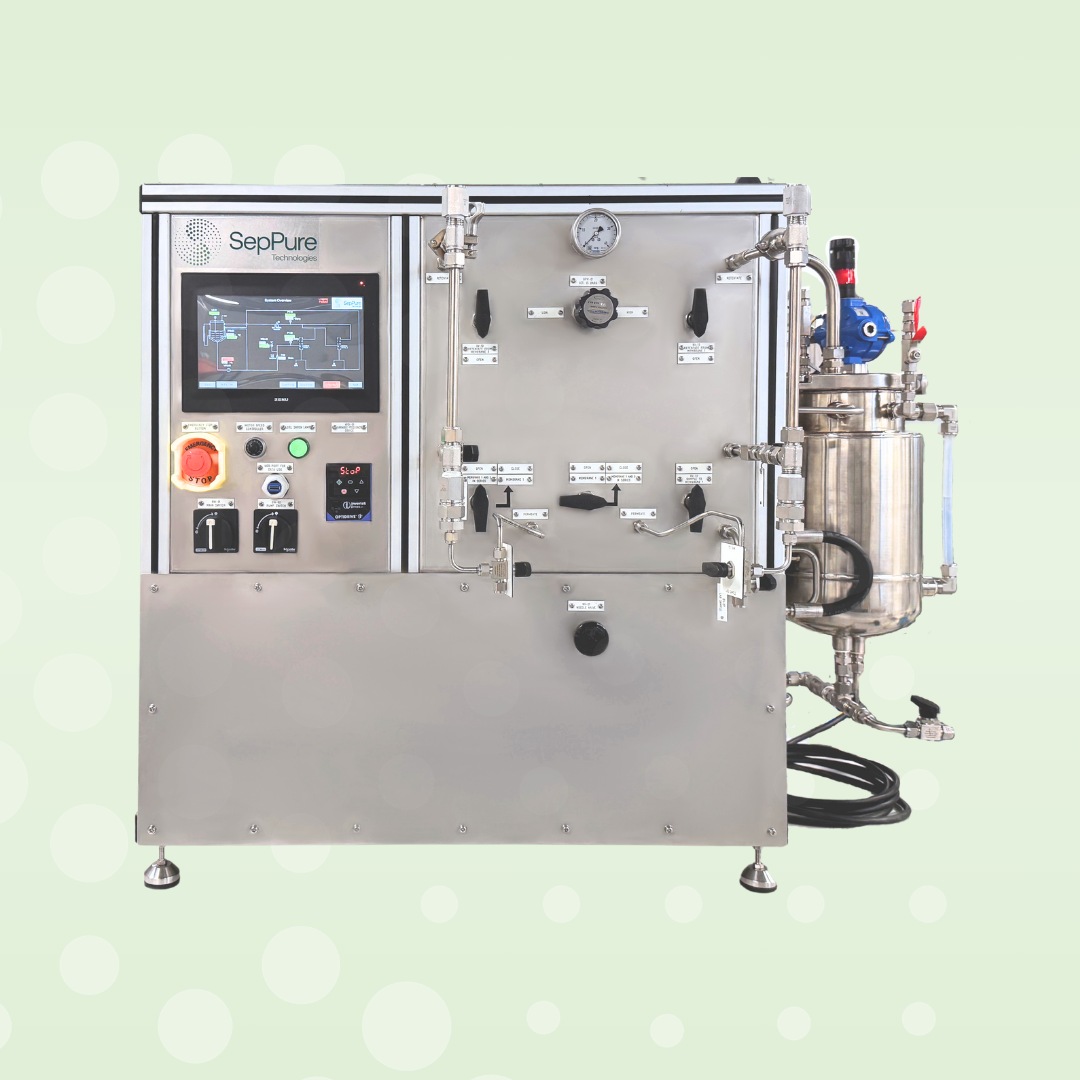

Skid Features:

• Variable Frequency Drive (VFD) for efficient pump motor speed control.
• Data logger for comprehensive process monitoring and data recording.
• 10.1" HMI touch panel for real-time data monitoring and parameter adjustments.
• Stainless Steel 316 construction which is compatible with most process liquids.
• Jacketed tank for heating and cooling (External heater/chiller not included).

Safety Measures:

• Emergency button (E-Stop). Ensures rapid system shutdown in case of emergencies.
• Explosion-proof instruments. All instruments are ATEX-certified for enhanced safety.
• Grounding protection for all AC and DC instruments and equipment.
• Power supply protection includes ELCB and MCBs for reliable protection.
• Safety interlock integrated for temperature, level, and pressure control.

Why Choose Our Lab-Scale Filtration Unit?

• Precision and Efficiency: Achieve consistent, high-quality filtration results with advanced control systems.
• Safety: Comprehensive safety features to protect users and equipment.
• Ease of Use: Intuitive control panel and indicators for seamless operation.
